4-in-1 Air-Cooled Handheld Laser Welder Portable Welding + Cutting + Surface Cleaning + Weld Seam Finishing Machine for Metal

Certification : CE、RoHS

Supply Ability : 50 sets / month

Focal Spot Diameter : 0.2 - 5mm

Delivery Time : 7–10 working days

Brand Name : jiangpin tech

Welding Speed : 10 - 30 mm/s (adjustable)

Output Power : 1500W (2000W optional)

Price : US$3,000

Packaging Details : wooden case

Cooling System : Air-Cooled (no external chiller)

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Place of Origin : China

Laser Type : Fiber Laser (1064nm)

MOQ : 1 set

Welding Thickness : 0.2 - 5.0mm (1500W) / 0.2 - 8.0mm (2000W)

Contact Now

4-in-1 Air-Cooled Handheld Laser Welder Portable Welding + Cutting + Surface Cleaning + Weld Seam Finishing Machine for Metal

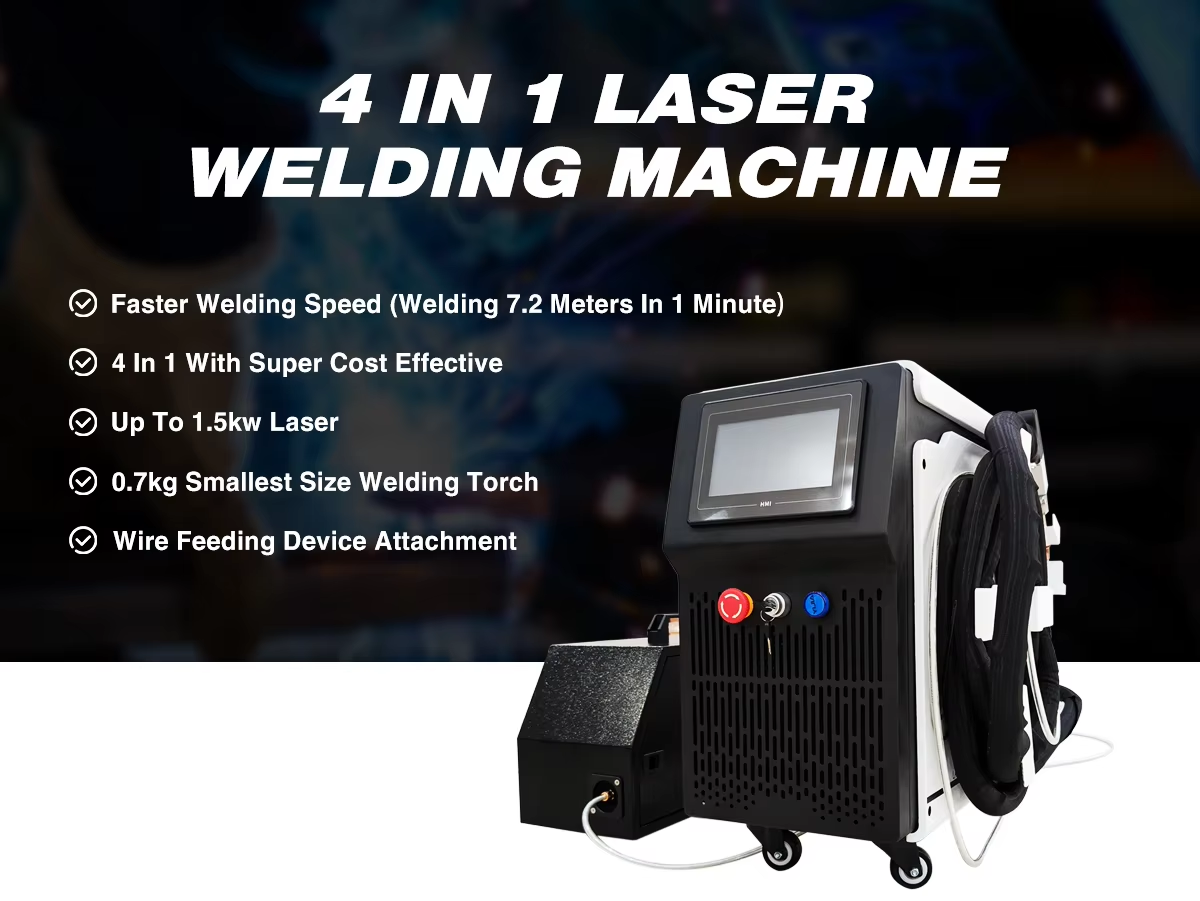

The 4-in-1 Handheld Fiber Laser Welding Machine is a versatile multi-functional tool that integrates welding, cutting, surface cleaning, and weld seam finishing into a single compact unit. Designed for metal fabrication workshops, mold repair shops, and on-site installation teams, this portable air-cooled system eliminates the need for bulky water chillers and delivers professional-grade results with unmatched convenience.
Technical Specifications
Product Name 1500W Handheld Laser Welding Machine
Laser Type Fiber Laser (1064nm)
Output Power 1500W (2000W optional)
Welding Thickness 0.2 - 5.0mm (1500W) / 0.2 - 8.0mm (2000W)
Welding Mode Continuous Wave
Welding Speed 10 - 30 mm/s (adjustable)
Focal Spot Diameter 0.2 - 5mm
Pulse Width 0.5 - 20ms
Single Pulse Energy 90J / 110J
Cooling System Air-Cooled (no external chiller)
Welding Method Manual Handheld (Qilin brand head)
Applicable Materials Stainless steel, carbon steel, aluminum, copper, galvanized sheet, and more
Key Features & Benefits
No Chiller Needed
Air-cooled system - plug in and work. No water pipes, no coolant refills, no extra maintenance. Saves time and money.
Truly Portable
Only 70-80kg, 65×33×60cm. Move it anywhere - between workstations, to job sites, even outdoors. Fits in a standard car.
Wide Thickness Range
1500W: 0.2-5mm / 2000W: 0.2-8mm. One machine handles thin sheets and thick plates. Power adjustable per material.
Works on Most Metals
Stainless steel, carbon steel, aluminum, copper, galvanized sheet - all compatible.

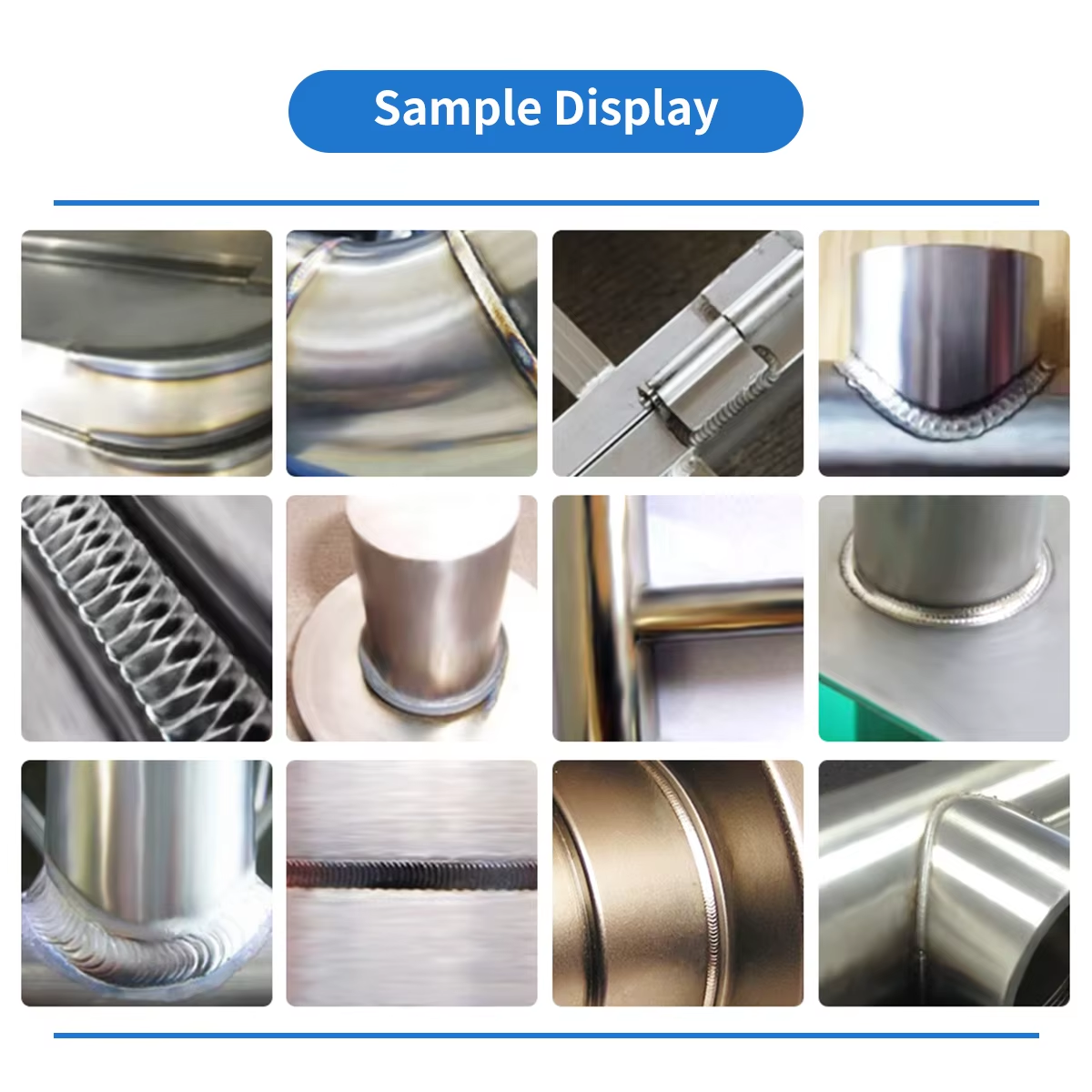

Clean, Precise Welds
Minimal spatter, smooth seams. Less post-weld grinding and finishing.
Quality Components
MAX laser source + Qilin handheld head - both trusted brands. No hidden substitutions.
1-Year Laser Warranty
1-year full machine + 3-year laser source. Well above industry standard.
Sample Testing Before Order
Send your materials. We weld, record video, and get your approval before production.
DDP Door-to-Door Shipping
Price includes shipping, customs, and duties. We deliver to your address - no extra fees.
Voltage Matched to Your Country
We set 110V/220V, 50/60Hz per your local standard before shipping. Ready to use out of the box.
Frequently Asked Questions
What thickness can this machine weld, and which power should I choose?
  • 1500W covers: 0.2 - 5.0mm
  • 2000W covers: 0.2 - 8.0mm
  • Power is adjustable. Different materials (stainless steel/aluminum/copper, etc.) require different parameters. We can provide recommended settings based on your specific materials.
What's the difference between Air-Cooled and Water-Cooled? Which one should I choose?
  • Air-Cooled (this model): No external chiller needed - lightweight, maintenance-free, plug-and-play. Ideal for light to medium-duty work, mobile scenarios, and small to medium-sized workshops.
  • Water-Cooled: Higher cooling efficiency for 24/7 heavy-duty continuous operation, but larger footprint and requires regular coolant maintenance.
  • Recommendation: If your daily welding time is within 6-8 hours and you need mobility, air-cooled is the better choice.
What are the main consumables? How can I save on costs?
  • Main consumables: Nozzles and protective lenses.
  • We recommend purchasing a one-year supply pack (approx. 30 sets) together with the machine - combined shipping saves you freight costs.
What about after-sales warranty and support?
  • 1-year full machine warranty + 3-year laser source warranty.
  • We provide a dedicated after-sales technical support group with online assistance, operation manuals, and video guidance - responsive support whenever you need it.
How can I verify the welding performance before ordering?
  • Option 1: Send us your material samples - we'll weld them and send you a video for confirmation.
  • Option 2: Tell us your material type and thickness - we'll test with equivalent materials and provide parameter reports. Production starts only after your approval.
Will the machine work with my local voltage and frequency?
  • Yes. We will configure the voltage and frequency (110V/220V, 50/60Hz) according to your country's electrical standards before shipment. It's ready to use upon arrival.
Is the laser dangerous to eyes? What safety measures are provided?
  • This is a Class 4 laser device. We include professional OD7+ protective glasses with every machine to ensure operator safety. We also recommend following standard laser safety protocols during operation.
How about shipping and import duties?
  • We offer DDP (Delivered Duty Paid) service - all shipping costs, customs clearance, and import duties are included. We deliver directly to your specified address. Just provide your delivery address, and we'll quote you the all-inclusive door-to-door price.
Product Gallery
4-in-1 Air-Cooled Handheld Laser Welder Portable Welding + Cutting + Surface Cleaning + Weld Seam Finishing Machine for Metal 4-in-1 Air-Cooled Handheld Laser Welder Portable Welding + Cutting + Surface Cleaning + Weld Seam Finishing Machine for Metal 4-in-1 Air-Cooled Handheld Laser Welder Portable Welding + Cutting + Surface Cleaning + Weld Seam Finishing Machine for Metal 4-in-1 Air-Cooled Handheld Laser Welder Portable Welding + Cutting + Surface Cleaning + Weld Seam Finishing Machine for Metal 4-in-1 Air-Cooled Handheld Laser Welder Portable Welding + Cutting + Surface Cleaning + Weld Seam Finishing Machine for Metal 4-in-1 Air-Cooled Handheld Laser Welder Portable Welding + Cutting + Surface Cleaning + Weld Seam Finishing Machine for Metal
